10 GWAS visualisation
Data visualization is key, not only for presentation but also to inspect the results.
10.0.1 QQ plots
We should create quantile-quantile (QQ) plots to compare the observed association test statistics with their expected values under the null hypothesis of no association and so assess the number, magnitude and quality of true associations.
First, we will add the standard error, call rate, A2, and allele frequencies.
library("data.table")
gwas_FRQ <- data.table::fread("dummy_project/gwa.frq")
gwas_LMISS <- data.table::fread("dummy_project/gwa.lmiss")
gwas_assoc <- data.table::fread("dummy_project/data.assoc.logistic")
gwas_LMISS$callrate <- 1 - gwas_LMISS$F_MISS
gwas_assoc_sub <- subset(gwas_assoc, TEST == "ADD")
gwas_assoc_sub$TEST <- NULL
temp <- subset(gwas_FRQ, select = c("SNP", "A2", "MAF", "NCHROBS"))
gwas_assoc_subfrq <- merge(gwas_assoc_sub, temp, by = "SNP")
temp <- subset(gwas_LMISS, select = c("SNP", "callrate"))
gwas_assoc_subfrqlmiss <- merge(gwas_assoc_subfrq, temp, by = "SNP")
head(gwas_assoc_subfrqlmiss)
# Remember:
# - that z = beta/se
# - beta = log(OR), because log is the natural log in r
gwas_assoc_subfrqlmiss$BETA = log(gwas_assoc_subfrqlmiss$OR)
gwas_assoc_subfrqlmiss$SE = gwas_assoc_subfrqlmiss$BETA/gwas_assoc_subfrqlmiss$STAT
gwas_assoc_subfrqlmiss_tib <- dplyr::as_tibble(gwas_assoc_subfrqlmiss)
col_order <- c("SNP", "CHR", "BP",
"A1", "A2", "MAF", "callrate", "NMISS", "NCHROBS",
"BETA", "SE", "OR", "STAT", "P")
gwas_assoc_compl <- gwas_assoc_subfrqlmiss_tib[, col_order]
dim(gwas_assoc_compl)
head(gwas_assoc_compl)
data.table::fwrite(gwas_assoc_compl, "dummy_project/gwas_assoc_compl.txt",
sep = "\t", quote = FALSE, row.names = FALSE)Let’s list the number of SNPs per chromosome. This gives a pretty good idea about the per-chromosome coverage. And it’s a sanity check: did the whole analysis run properly (we expect 22 chromosomes)?
Chr | Freq |
|---|---|
1 | 23,173 |
2 | 25,206 |
3 | 21,402 |
4 | 19,008 |
5 | 19,157 |
6 | 20,672 |
7 | 16,581 |
8 | 18,089 |
9 | 15,709 |
10 | 15,536 |
11 | 14,564 |
12 | 14,889 |
13 | 11,524 |
14 | 9,822 |
15 | 8,838 |
16 | 8,920 |
17 | 8,262 |
18 | 10,356 |
19 | 5,820 |
20 | 7,792 |
21 | 5,412 |
22 | 5,370 |
Question: Try to figure out how to get the number of variants per chromosomes. Why do the number of variants per chrosome (approximately) correlate with the chromosome number?
Question: Where are the data for chromosome X, Y and MT?
Let’s plot the QQ plot to diagnose our GWAS.
Since we’re working in Utrecht on the Utrecht Science Park, let’s get the color scheme in R.
uithof_color = c("#FBB820","#F59D10","#E55738","#DB003F","#E35493","#D5267B",
"#CC0071","#A8448A","#9A3480","#8D5B9A","#705296","#686AA9",
"#6173AD","#4C81BF","#2F8BC9","#1290D9","#1396D8","#15A6C1",
"#5EB17F","#86B833","#C5D220","#9FC228","#78B113","#49A01D",
"#595A5C","#A2A3A4", "#D7D8D7", "#ECECEC", "#FFFFFF", "#000000")library("qqman")
gwas_threshold = -log10(5e-8)
# you could save the image, or just display it
# png("dummy_project/gwas-qq.png")
qqman::qq(gwas_assoc_compl$P, main = "QQ plot of GWAS",
xlim = c(0, 7),
ylim = c(0, 12),
pch = 20, col = uithof_color[16], cex = 1.5, las = 1, bty = "n")
abline(h = gwas_threshold,
col = uithof_color[25], lty = "dashed")

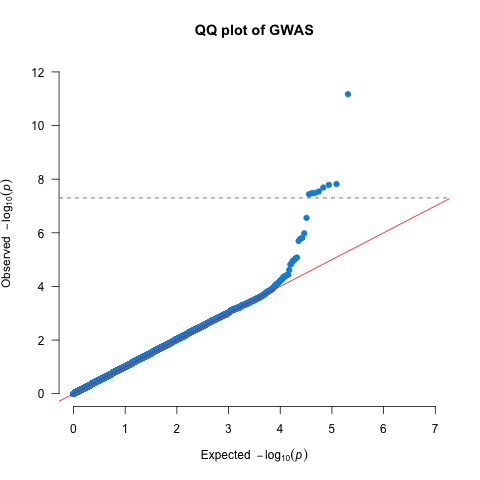

Figure 10.1: A QQ plot.
10.1 Manhattan plots
We also need to create a Manhattan plot to display the association test P-values as a function of chromosomal location and thus provide a visual summary of association test results that draw immediate attention to any regions of significance (Figure 10.2).
# you could save the image, or just display it
# png(paste0(COURSE_loc, "/dummy_project/gwas-manhattan.png"))
qqman::manhattan(gwas_assoc_compl, main = "Manhattan Plot",
ylim = c(0, 12),
cex = 0.6, cex.axis = 0.9,
col = c(uithof_color[16], uithof_color[24]))
Figure 10.2: A manhattan plot.
10.2 Other plots
It is also informative to plot the density per chromosome. We can use the CMplot for that which you can find here. For now we just make these graphs ‘quick-n-dirty’, you can further prettify them, but you easily loose track of time, so maybe carry on.
library("CMplot")
CMplot(gwas_assoc_complsub,
plot.type = c("d", "c", "m", "q"), LOG10 = TRUE, ylim = NULL,
threshold = c(1e-6,1e-4), threshold.lty = c(1,2), threshold.lwd = c(1,1), threshold.col = c("black", "grey"),
amplify = TRUE,
bin.size = 1e6, chr.den.col = c("darkgreen", "yellow", "red"),
signal.col = c("red", "green"), signal.cex = c(1,1), signal.pch = c(19,19),
file.output = FALSE, file = "png",
main = "", dpi = 300, verbose = TRUE)This would lead to the following graphs.Question: What do the grey spots on the density plot indicate?
Figure 10.3: SNP density of the association results.
Figure 10.4: A QQ plot including a 95% confidence interval (blue area) and genome-wide significant hits (red).
Figure 10.5: A regular manhattan plot. Colored by chromosome, suggestive hits are green, genome-wide hits are red. The bottom graph shows the per-chromosome SNP density.
Figure 10.6: A circular manhattan.
10.3 Interactive plots
You can also make an interactive version of the Manhattan - just because you can. The code below shows you how.
library(plotly)
library(dplyr)
# Prepare the dataset (as an example we use the data (gwasResults) from the `qqman`-package)
don <- gwasResults %>%
# Compute chromosome size
group_by(CHR) %>%
summarise(chr_len=max(BP)) %>%
# Calculate cumulative position of each chromosome
mutate(tot=cumsum(chr_len)-chr_len) %>%
select(-chr_len) %>%
# Add this info to the initial dataset
left_join(gwasResults, ., by=c("CHR"="CHR")) %>%
# Add a cumulative position of each SNP
arrange(CHR, BP) %>%
mutate( BPcum=BP+tot) %>%
# Add highlight and annotation information
mutate( is_highlight=ifelse(SNP %in% snpsOfInterest, "yes", "no")) %>%
# Filter SNP to make the plot lighter
filter(-log10(P)>0.5)
# Prepare X axis
axisdf <- don %>% group_by(CHR) %>% summarize(center=( max(BPcum) + min(BPcum) ) / 2 )
# Prepare text description for each SNP:
don$text <- paste("SNP: ", don$SNP, "\nPosition: ", don$BP, "\nChromosome: ", don$CHR, "\nLOD score:", -log10(don$P) %>% round(2), "\nWhat else do you wanna know", sep="")
# Make the plot
p <- ggplot(don, aes(x=BPcum, y=-log10(P), text=text)) +
# Show all points
geom_point( aes(color=as.factor(CHR)), alpha=0.8, size=1.3) +
scale_color_manual(values = rep(c("grey", "skyblue"), 22 )) +
# custom X axis:
scale_x_continuous( label = axisdf$CHR, breaks= axisdf$center ) +
scale_y_continuous(expand = c(0, 0)) + # remove space between plot area and x axis
# Add highlighted points
geom_point(data=subset(don, is_highlight=="yes"), color="orange", size=2) +
# Custom the theme:
theme_bw() +
theme(
legend.position="none",
panel.border = element_blank(),
panel.grid.major.x = element_blank(),
panel.grid.minor.x = element_blank()
)

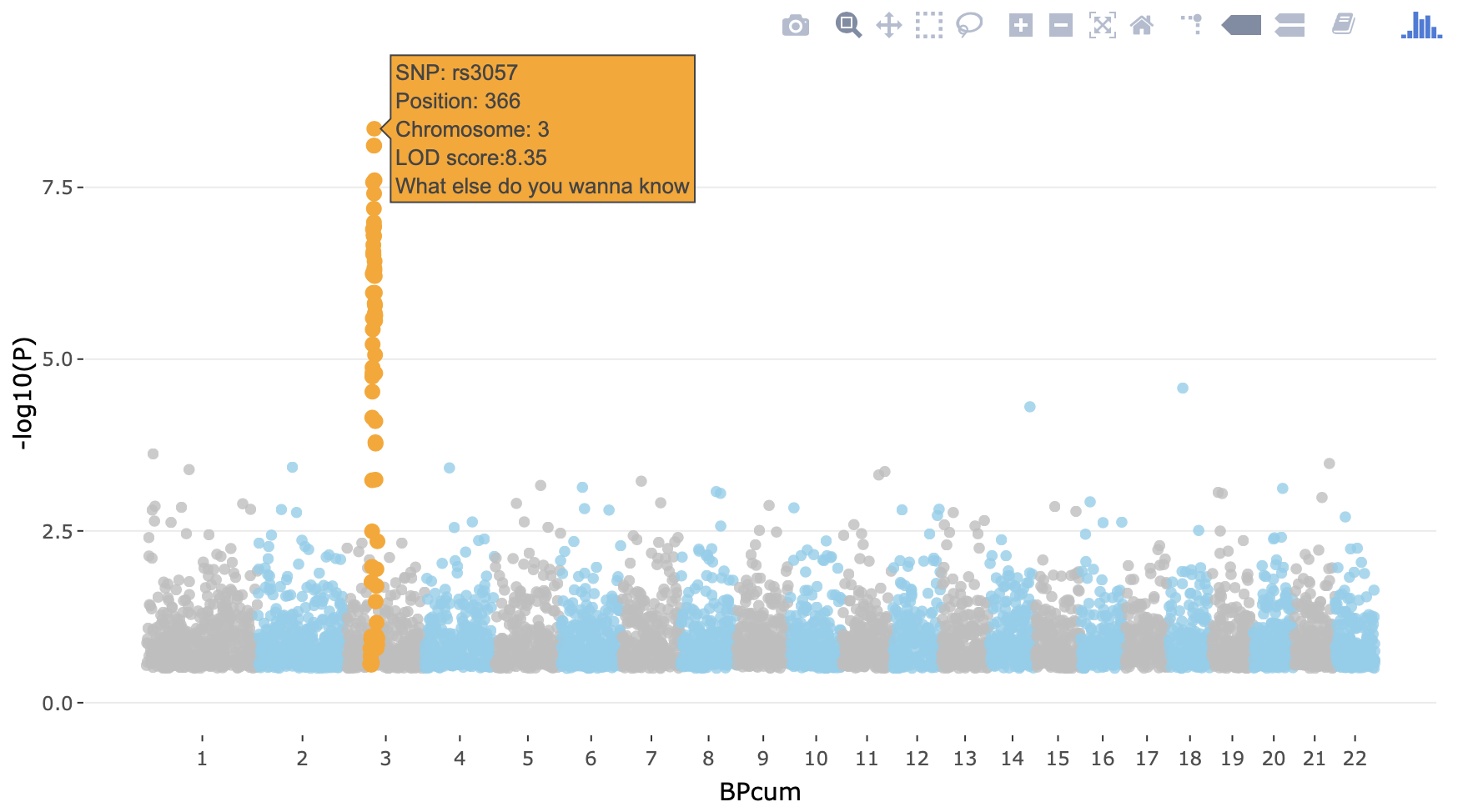

ggplotly(p, tooltip="text")It will produce something like below. In the CoCalc Notebook-window it isn’t smooth, but this way you have an idea how to do it in a real-case scenario.
Again, this is an example with dummy data - you can try to do it for our GWAS, but careful with the time. You can also choose to carry on.
You will encounter the above types of visualizations in any high-quality GWAS paper, because each is so critically informative. Usually, analysts of large-scale meta-analyses of GWAS will also stratify the QQ-plots based on the imputation quality (if your GWAS was imputed), call rate, and allele frequency (although that is rarely shared in publications, not even in supplemental material).
